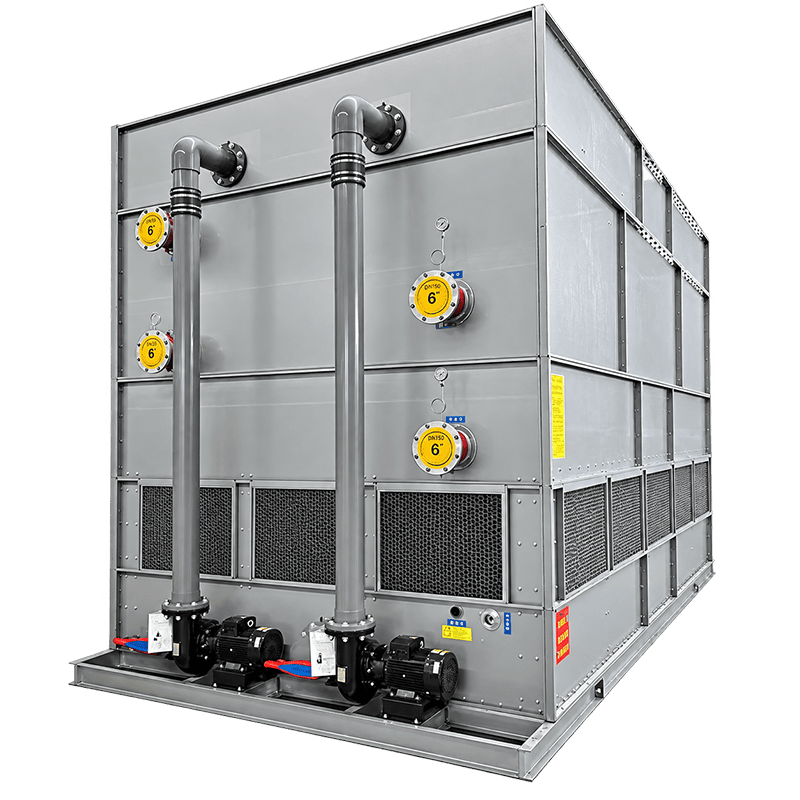

Counter Flow Closed Cooling Tower
High-efficiency closed-loop cooling system designed for precise temperature control in industrial processes. Prevents fluid contamination while delivering reliable, continuous cooling performance.
Closed Loop
No contamination
Energy Efficient
Low operating cost
Custom Design
OEM/ODM available
Global Delivery
Worldwide shipping
Technical Data
Technical Specifications
Comprehensive performance data for accurate equipment selection. All parameters are based on standard test conditions.
Counter Flow Closed Cooling Tower -- Model Series
| Parameter | HFC-10 | HFC-20 | HFC-40 | HFC-60 | HFC-80 | HFC-100 |
|---|---|---|---|---|---|---|
| Cooling Capacity (kW) | 100 | 200 | 400 | 600 | 800 | 1000 |
| Water Flow Rate (m³/h) | 17.2 | 34.4 | 68.8 | 103.2 | 137.6 | 172.0 |
| Inlet Temperature (°C) | 37 | |||||
| Outlet Temperature (°C) | 32 | |||||
| Design Wet-Bulb (°C) | 28 | |||||
| Fan Motor Power (kW) | 1.5 | 3.0 | 5.5 | 7.5 | 11.0 | 15.0 |
| Spray Pump Power (kW) | 0.75 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 |
| Working Pressure (MPa) | ≤ 1.6 | |||||
| Noise Level dB(A) | 55 | 58 | 62 | 65 | 68 | 70 |
| Dimensions L×W×H (mm) | 1800×1200×2200 | 2200×1500×2600 | 2800×2000×3200 | 3200×2400×3600 | 3800×2800×4000 | 4200×3200×4200 |
| Operating Weight (kg) | 850 | 1500 | 2800 | 4200 | 5600 | 7200 |
* Standard test conditions: Inlet 37°C / Outlet 32°C / Wet-bulb 28°C. Actual performance may vary based on site conditions. Contact us for customized thermal calculations.
Core Components
Premium Materials & Components
Every component is carefully selected and rigorously tested to ensure long-term reliability, corrosion resistance, and optimal heat-exchange performance.
Heat Exchange Coil
T2 copper or 304/316L stainless steel coils with optimized tube arrangement for maximum heat transfer efficiency. Pressure tested to 2.5 MPa.
Axial Fan System
Low-noise, high-airflow axial fans with aluminum alloy blades. Dynamically balanced for vibration-free operation. Optional variable frequency drive for energy savings.
Spray Distribution
Precision-engineered PVC spray nozzles ensure uniform water distribution across the entire coil surface. Anti-clogging design for maintenance-free operation.
PVC Fill Media
High-efficiency PVC fill packing with optimized corrugation angle maximizes air-water contact area. Flame-retardant and UV-resistant for extended service life.
Galvanized Steel Casing
Heavy-duty hot-dip galvanized steel frame and panels provide superior corrosion resistance. Optional 304 stainless steel casing for harsh environments.
Industrial Motor
IP55 rated, Class F insulation motors designed for continuous outdoor operation. Energy-efficient IE3 standard with optional VFD compatibility.

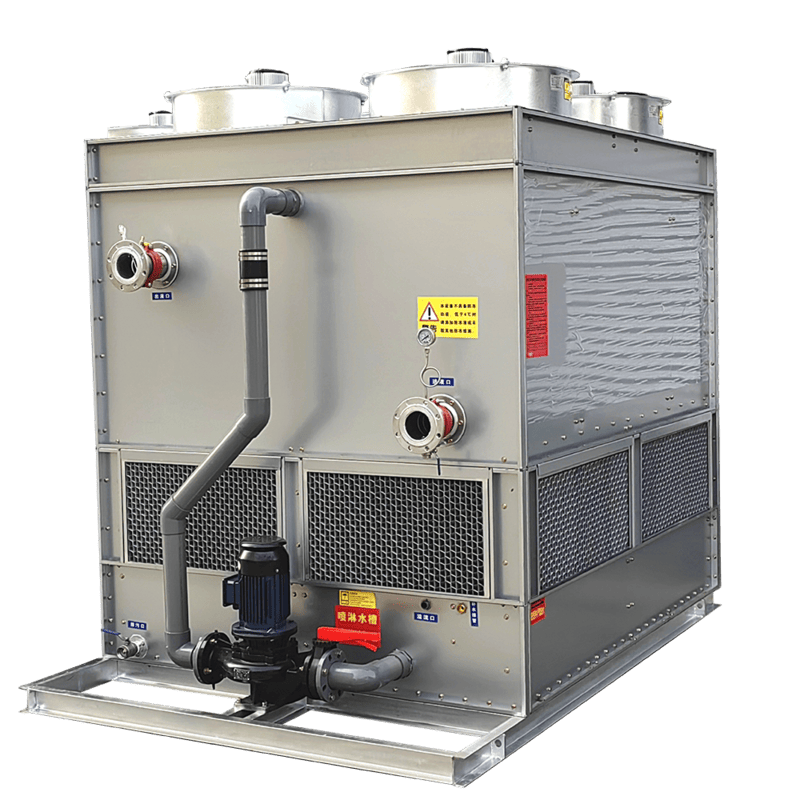

How It Works

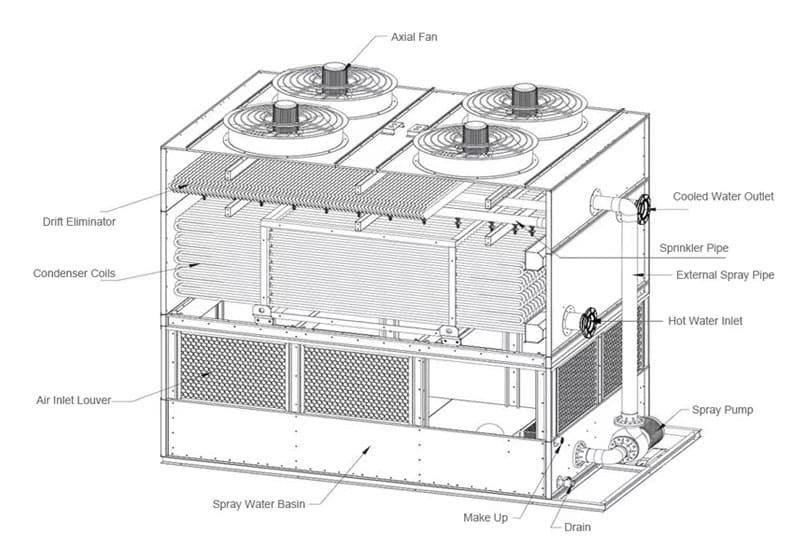

Working Principle
The counter flow closed cooling tower combines evaporative cooling and forced air convection in a sealed circuit to deliver efficient, contamination-free heat rejection.
Closed-Loop Circulation
Hot process fluid enters the internal coil tubes from the top and flows downward through the sealed heat exchange coil. The fluid never contacts the outside atmosphere, preventing contamination and scaling.
Spray Water Evaporation
A recirculating spray pump distributes water evenly over the external surface of the coil. As the spray water absorbs heat from the coil, a portion evaporates, creating a powerful cooling effect through latent heat transfer.
Counter Flow Air Movement
Axial fans draw ambient air upward through the coil in the opposite direction of the downward-flowing spray water. This counter flow arrangement maximizes the temperature differential and heat transfer efficiency.
Heat Rejection & Recirculation
Warm moist air is exhausted from the top. Unevaporated spray water is collected in the basin and recirculated. The cooled process fluid exits the coil at the target temperature and returns to the system.
Zero Contamination
Sealed coil design keeps process fluid completely isolated from ambient air, dust, and biological growth.
Higher Efficiency
Counter flow design achieves closer approach temperatures compared to cross flow, reducing energy consumption by up to 30%.
Lower Maintenance
Reduced scaling and fouling means less downtime and lower maintenance costs over the equipment's entire lifecycle.
Manufacturing
Workshop & Assembly
Our 36,000 m² factory houses complete production lines from sheet metal fabrication to final quality testing. Every unit undergoes rigorous inspection before shipment.
Sheet Metal Fabrication
CNC cutting and bending for precision steel components

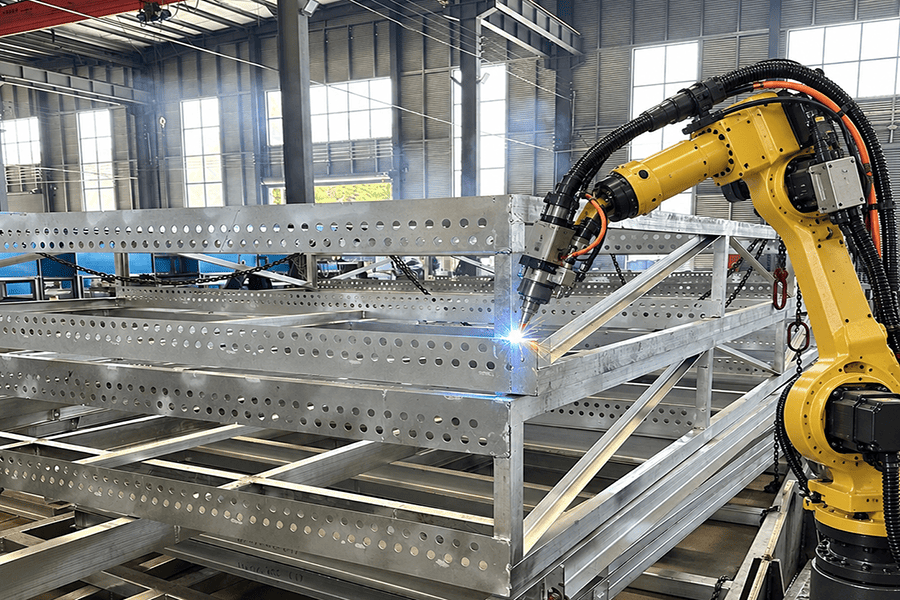

Professional Welding
Certified welders ensure structural integrity and leak-proof joints

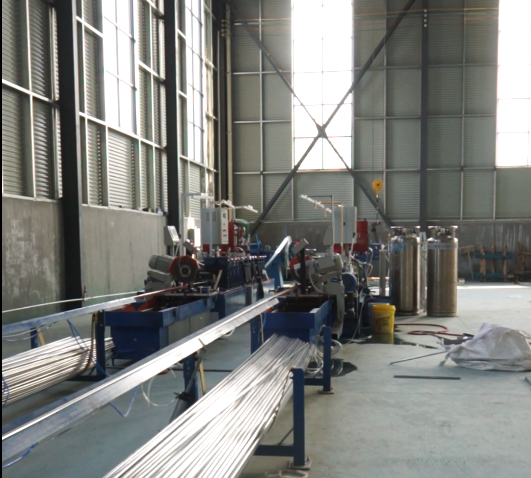

Coil Manufacturing
Precision coil bending and pressure testing at 2.5 MPa
Hot-Dip Galvanizing
Complete corrosion protection for 20+ years of service life

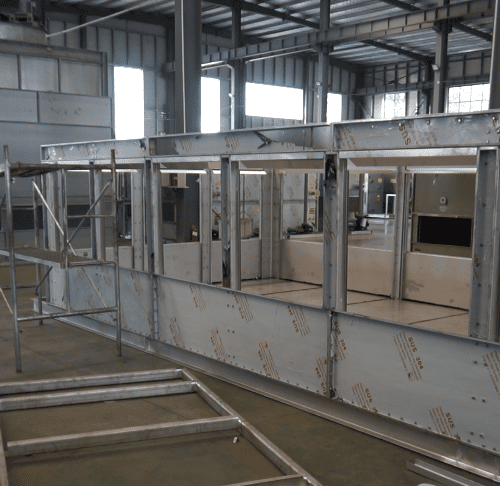

Final Assembly
Systematic assembly with multi-point quality checkpoints
Quality Testing
Performance verification and leak testing before dispatch
36,000
m² Factory Area
5,000
Sets Annual Capacity
60+
Skilled Workers
5
Technical Engineers
Logistics
Packaging & Delivery
Professional packaging and global shipping ensure your equipment arrives safely. We handle export documentation, container loading, and logistics coordination.

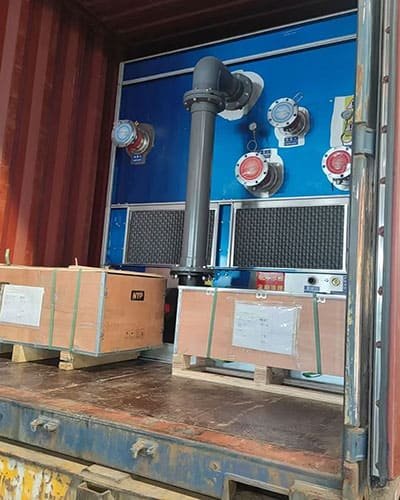

Industrial-Grade Packaging
Steel frame reinforcement with anti-vibration padding. Moisture-proof wrapping and fumigation-free plywood crating meet international shipping standards.
Export Documentation
Complete export documentation including commercial invoice, packing list, bill of lading, certificate of origin, and CE/ISO certificates for smooth customs clearance.

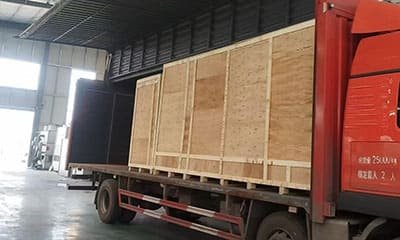

Global Shipping
FOB, CIF, and DDP terms available. We coordinate with trusted freight forwarders for sea, rail, and air shipment to any destination worldwide.
Installation Support
Detailed installation manuals, foundation drawings, and piping diagrams included. Remote video guidance and on-site commissioning support available upon request.
Typical Project Timeline
Inquiry & Selection
1-3 days
Design Confirmation
3-5 days
Manufacturing
15-30 days
Quality Testing
2-3 days
Shipping & Delivery
15-40 days
Certifications & Standards
Our products comply with international quality and safety standards
