Hybrid Wet & Dry
Cooling Tower
Combining evaporative and dry cooling in a single unit, the Haofeng Hybrid Cooling Tower delivers precise temperature control, significant water savings, and year-round operational reliability -- engineered for demanding industrial environments.
- Switchable wet/dry/hybrid operating modes for maximum efficiency
- Up to 70% water consumption reduction vs. conventional cooling towers
- Eliminates visible plume -- ideal for urban and regulated sites
- Stainless steel coil, corrosion-resistant galvanized structure
- CE, CTI, ISO 9001, SGS & TÜV certified
Certified
CE · CTI · ISO 9001
Water Saving
Up to 70%
5,000+
Sets Produced Annually
15+
Years Experience
1,000+
Global Customers
36,000 m²
Factory Area
Technical Specifications
Standard performance parameters for Haofeng Hybrid Wet & Dry Cooling Tower series. Custom configurations available on request.
| Parameter | HF-HYB-50 | HF-HYB-100 | HF-HYB-200 | HF-HYB-500 |
|---|---|---|---|---|
| Cooling Capacity (kW) | 50 | 100 | 200 | 500 |
| Water Flow Rate (m³/h) | 8.6 | 17.2 | 34.4 | 86 |
| Inlet Temperature (°C) | 40 | 40 | 40 | 40 |
| Outlet Temperature (°C) | 30 | 30 | 30 | 30 |
| Design Wet-Bulb Temp (°C) | 28 | 28 | 28 | 28 |
| Fan Motor Power (kW) | 1.5 | 3.0 | 5.5 | 11 |
| Pump Power (kW) | 0.37 | 0.75 | 1.5 | 3.0 |
| Working Pressure (MPa) | 1.0 | 1.0 | 1.0 | 1.0 |
| Noise Level (dB(A) @ 1m) | ≤60 | ≤62 | ≤65 | ≤68 |
| Power Supply | 3Ph / 380V / 50Hz (customizable) | |||
Coil Material
304 / 316L stainless steel coil standard; copper coil optional for aggressive fluid compatibility
Structure
Hot-dip galvanized steel frame with PVC fill media and high-efficiency drift eliminators
Certifications
CE, CTI, ISO 9001:2015, SGS and TÜV certified for international project compliance

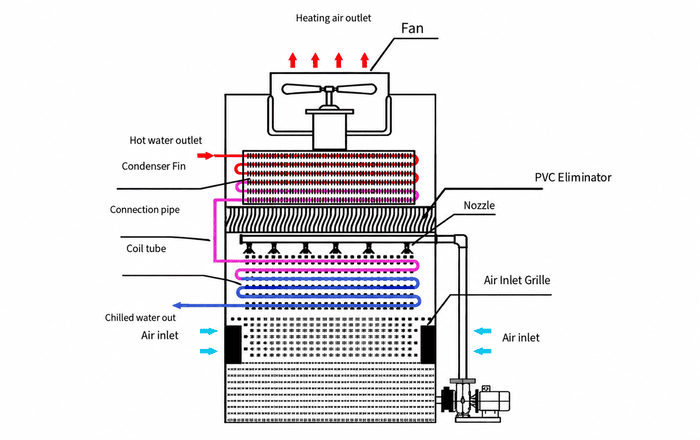

How It Works
The hybrid design intelligently combines two proven heat-rejection mechanisms, automatically switching modes to match ambient conditions and load requirements.
Dry Mode -- Sensible Heat Rejection
In cool ambient conditions, the unit operates purely as a dry cooler. Warm process fluid flows through the finned coil; ambient air passes over the fins and carries away heat without any water consumption. Zero water use, zero plume.
Wet Mode -- Evaporative Cooling
When ambient temperature rises or higher cooling capacity is needed, the spray system activates. Water is distributed over the coil surface; evaporation dramatically increases heat transfer, achieving outlet temperatures close to the wet-bulb temperature.
Hybrid Mode -- Intelligent Combination
The control system continuously monitors ambient conditions and process load. It blends dry and wet operation proportionally -- maximising energy efficiency, minimising water usage, and eliminating visible vapour plume for regulatory compliance.
Closed-Circuit Design -- Clean Process Fluid
The process fluid circulates inside a sealed coil at all times and never contacts the spray water or ambient air. This eliminates contamination, scale build-up, and biological risk within the process loop, protecting heat exchangers and downstream equipment.
Operating Mode Comparison
Energy Saving
Reduced fan and pump energy in dry mode
No Visible Plume
Compliant with strict environmental regulations
Typical Applications
Engineered cooling solutions deployed across critical industries worldwide
Data Centres
Precision cooling for servers & IT infrastructure
Power & Energy
Turbine & generator heat rejection systems
Chemical & Pharma
Corrosion-resistant process cooling
Metal Processing
Quenching & heat-treatment cooling loops
Plastics & Rubber
Mould & extruder cooling for production lines
Food Processing
Hygienic cooling for food-grade environments
HVAC Systems
Central plant & district cooling applications
EPC Contractors
Turnkey cooling packages for large-scale projects
8+
Industries Served
1,000+
Global Projects
15+
Years Experience
Discuss Your
Cooling Project
Submit your project details and our engineers will provide accurate equipment selection and a complete cooling solution tailored to your operating conditions.
Phone / WhatsApp
+86 15653643728
ling@hfcooling.cn
Address
No.1 Industrial Street, Weicheng Economic Zone,
Weifang City, Shandong, China
Our Engineering Promise We do not simply sell equipment. We analyze your operating conditions, perform accurate thermal calculations, and recommend the optimal cooling solution -- ensuring your required outlet temperature is achieved reliably.
