Evaporative
Condenser

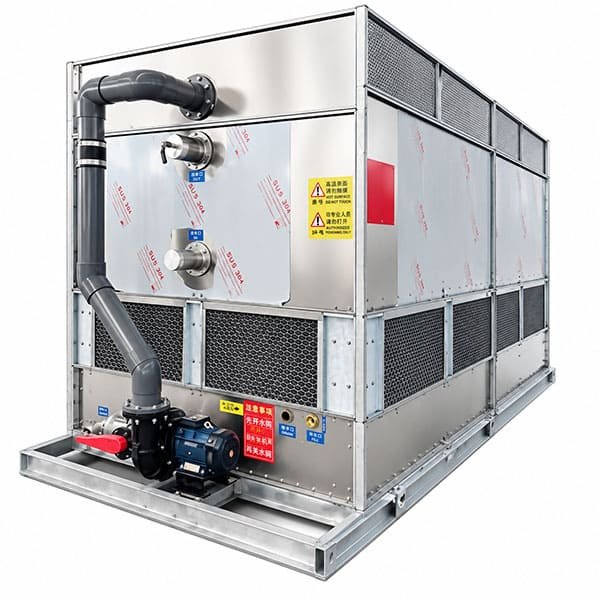

High-efficiency evaporative condensers engineered for industrial refrigeration, HVAC systems, and process cooling applications. Achieve superior heat rejection with minimal water and energy consumption.
Annual Capacity
5,000+ Units / Year
15+
Years Experience
30%
Water Savings vs. Open Tower
40°C+
Ambient Design Temp
1,000+
Global Projects Delivered
36,000
m² Factory Area
Product Features
Designed and manufactured to deliver reliable heat rejection performance under the most demanding industrial operating conditions.
High Heat Rejection Efficiency
Combines evaporative cooling and direct air cooling to achieve condensing temperatures as low as 5-8°C above wet-bulb temperature, significantly reducing compressor energy consumption.
Corrosion-Resistant Construction
Hot-dip galvanized steel casing, stainless steel or copper coil options, and UV-resistant PVC fill media ensure long service life in harsh industrial environments.
Compact Integrated Design
Condenser coil, spray system, fan, and water basin integrated into a single compact unit -- eliminating the need for a separate cooling tower and reducing installation footprint.
Low Water Consumption
Drift eliminators and precision spray nozzles minimize water loss. Water consumption is up to 30% lower compared to conventional open cooling tower systems.
Easy Maintenance Access
Removable access panels, accessible spray headers, and cleanable drift eliminators allow routine maintenance without specialized tools or equipment shutdown.
Custom Engineering Available
Coil material, capacity, fan configuration, and structural design are fully customizable to meet project-specific operating conditions, space constraints, and refrigerant types.

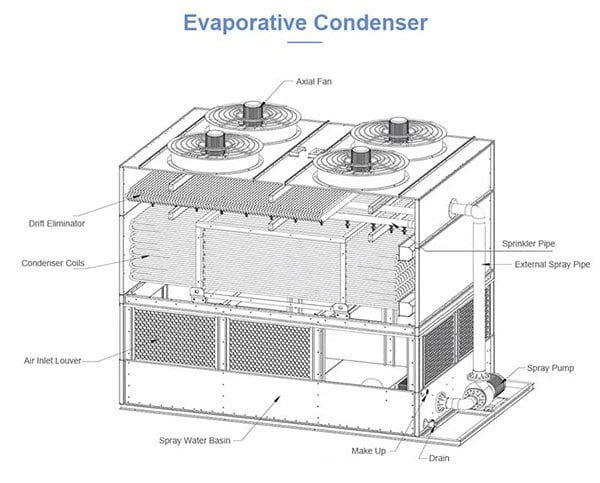

Working Principle
An evaporative condenser rejects heat from a refrigeration or process system by combining the principles of heat transfer and evaporative cooling in a single compact unit -- eliminating the need for a separate condenser and cooling tower.
Hot Refrigerant Enters the Coil
High-pressure, high-temperature refrigerant gas from the compressor discharge enters the condensing coil located inside the unit.
Spray Water Contacts the Coil
Spray nozzles distribute water evenly over the coil surface. As water evaporates, it absorbs large amounts of latent heat from the coil, rapidly cooling the refrigerant inside.
Air Flow Enhances Evaporation
Axial fans draw or force ambient air through the unit, increasing the evaporation rate and carrying away heat-laden air to atmosphere.
Condensed Refrigerant Exits
Cooled and condensed liquid refrigerant exits the coil and returns to the expansion device, completing the refrigeration cycle efficiently.
5-8°C
Above Wet-Bulb Temp
≤75 dB
Operating Noise Level
99%
Drift Elimination Rate
Technical Specifications
Standard model range. Custom configurations available based on your specific operating conditions and project requirements.
| Parameter | EC-50 | EC-100 | EC-200 | EC-350 | EC-500 |
|---|---|---|---|---|---|
| Heat Rejection Capacity (kW) | 50 | 100 | 200 | 350 | 500 |
| Design Wet-Bulb Temp (°C) | ≤ 28°C (custom design available) | ||||
| Condensing Temperature (°C) | 33-40°C (5-8°C above WBT) | ||||
| Spray Water Flow Rate (m³/h) | 3.5 | 6.5 | 12 | 20 | 28 |
| Fan Motor Power (kW) | 1.5 | 3.0 | 5.5 | 7.5 | 11 |
| Spray Pump Power (kW) | 0.37 | 0.55 | 1.1 | 1.5 | 2.2 |
| Working Pressure (MPa) | ≤ 2.5 MPa (custom higher pressure available) | ||||
| Noise Level (dB-A @ 1m) | ≤ 65 | ≤ 68 | ≤ 70 | ≤ 72 | ≤ 75 |
| Coil Material Options | Galvanized Steel / Stainless Steel / Copper | ||||
| Power Supply | 3-Phase 380V / 50Hz (or per project spec) | ||||
| Applicable Refrigerants | NH₃, R22, R134a, R404A, R507, CO₂ (custom) | ||||
* All specifications are indicative. Final selection based on actual operating conditions. Contact our engineering team for a customized thermal calculation.
Key Components
Every component is selected for durability, corrosion resistance, and long-term performance in industrial environments.

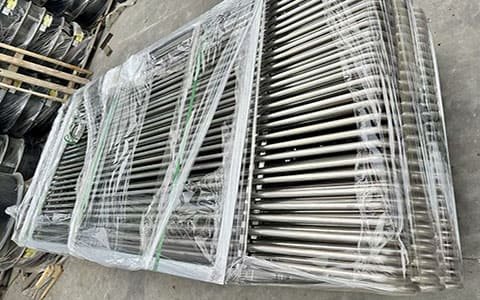

Condensing Coil
Hot-dip galvanized steel, stainless steel 304/316, or copper coils. Precision welded for leak-free performance under high working pressures up to 2.5 MPa.

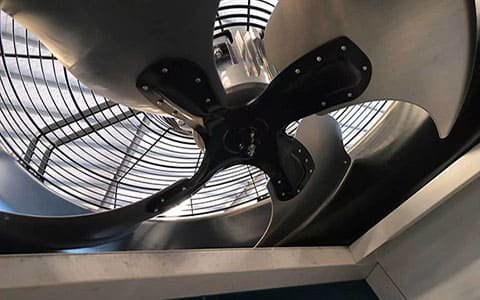

Axial Fan & Motor
FRP or aluminum alloy fan blades for high airflow efficiency. IP55-rated motors with Class F insulation for continuous outdoor operation in humid conditions.

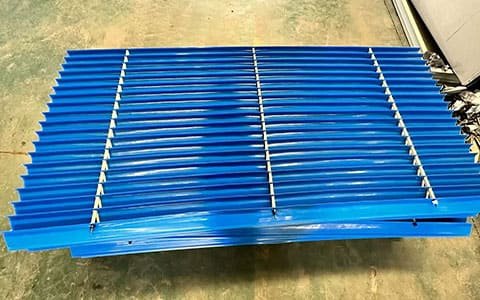

Drift Eliminators
High-efficiency PVC drift eliminators achieve ≥99% water droplet capture, minimizing water loss and preventing Legionella risk in surrounding areas.

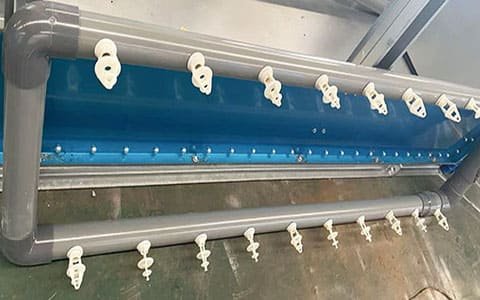

Spray Nozzles & Headers
ABS or PP full-cone nozzles provide uniform water distribution across the entire coil surface, maximizing evaporative heat transfer efficiency.

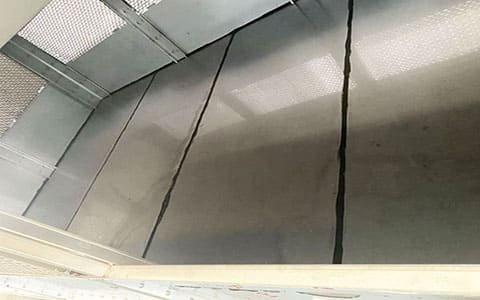

Water Basin & Casing
Hot-dip galvanized steel basin with float valve and drain valve. Reinforced structural casing designed to withstand wind loads and seismic requirements.

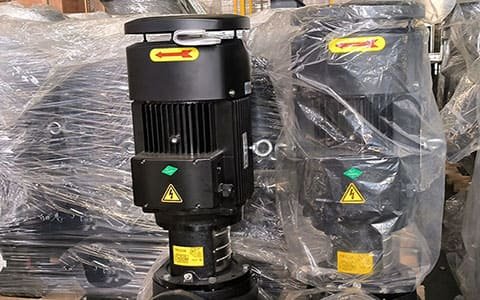

Circulation Pump
Stainless steel or cast iron centrifugal pumps with mechanical seals. Continuous-duty rated for 24/7 operation with minimal maintenance requirements.
Application Scope
Evaporative condensers are the preferred heat rejection solution across a wide range of industrial and commercial refrigeration applications.
Cold Storage & Warehouses
Large-scale refrigeration systems for food storage, pharmaceutical cold chain, and logistics facilities.
Food & Beverage Processing
Hygienic refrigeration systems for meat processing, dairy, beverage production, and quick-freeze applications.
Chemical & Pharmaceutical
Process cooling for chemical reactors, pharmaceutical production, and industrial refrigeration using ammonia or HFC refrigerants.
Power & Energy
Heat rejection for ORC power generation systems, industrial heat pumps, and power plant auxiliary cooling applications.
Industrial Refrigeration
Ammonia refrigeration systems for large industrial plants, ice rinks, and process cooling with high-capacity requirements.
HVAC Systems
Central air conditioning heat rejection for commercial buildings, shopping centers, hospitals, and district cooling systems.
Data Centres
Efficient heat rejection for data centre cooling infrastructure, supporting 24/7 continuous operation with high reliability requirements.
Plastics & Rubber
Process cooling for injection molding, extrusion, and rubber vulcanization where precise temperature control is critical to product quality.
International Certifications & Standards

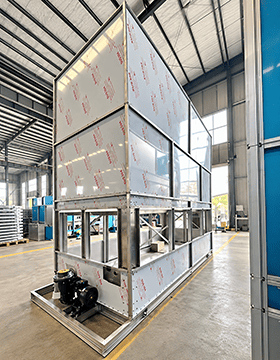

Workshop Assembly & Quality Control
Our 36,000 m² manufacturing facility houses dedicated production lines for coil fabrication, casing assembly, and final testing. Every unit undergoes rigorous quality checks before shipment.

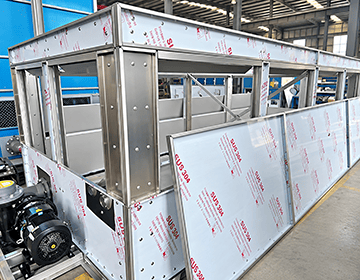

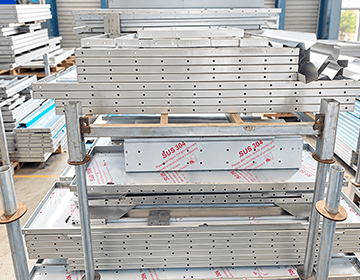

Coil Fabrication & Welding
Precision tube bending, fin assembly, and certified welding processes. All welds are inspected by qualified technicians.

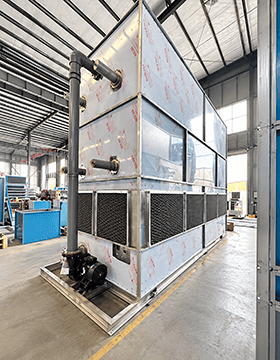

Hydrostatic Pressure Testing
Every coil assembly is hydraulically tested to 1.5× working pressure. Leak-free certification before casing assembly proceeds.
Hot-Dip Galvanizing
Structural steel components are hot-dip galvanized to G90 standard, providing 20+ years of corrosion protection in outdoor environments.
Final Performance Verification
Completed units undergo airflow, noise, vibration, and water distribution testing. Test reports are provided with every shipment.
Shipping & Delivery
Professional export packaging and worldwide logistics coordination to ensure your equipment arrives safely and on schedule.

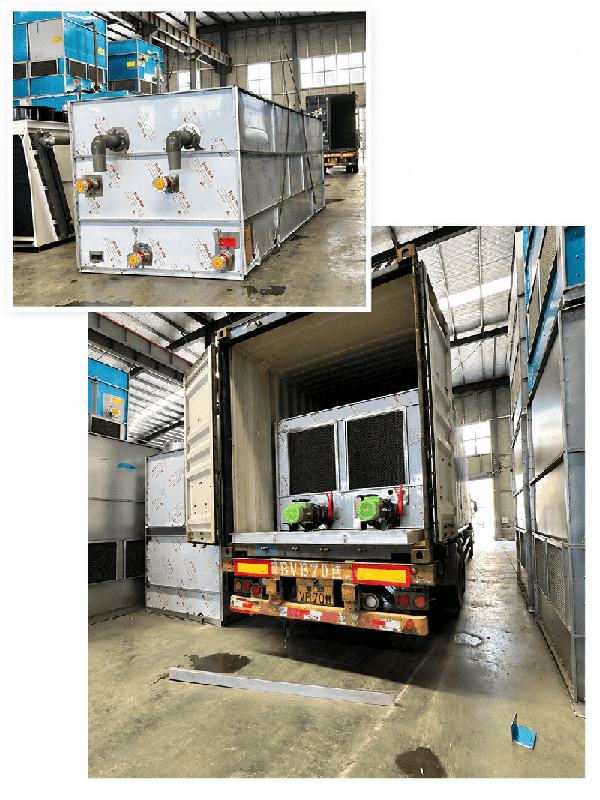

Export-Grade Packaging
Heavy-duty wooden crates or steel frames with moisture-proof wrapping, corner protectors, and anti-vibration blocking. Suitable for FCL and LCL ocean freight.
Worldwide Shipping
FOB Qingdao / Tianjin standard. CIF, CFR, and DDP terms available. We coordinate with freight forwarders experienced in heavy industrial equipment.
Complete Documentation
Full export documentation including commercial invoice, packing list, bill of lading, certificate of origin, test reports, and CE/ISO certificates provided.
Lead Time
Standard models: 15-25 working days. Custom-engineered units: 30-45 working days from order confirmation. Rush production available upon request.
50+
Countries Served
15-25
Days Lead Time
FOB
Qingdao / Tianjin
18 mo
Warranty Period
